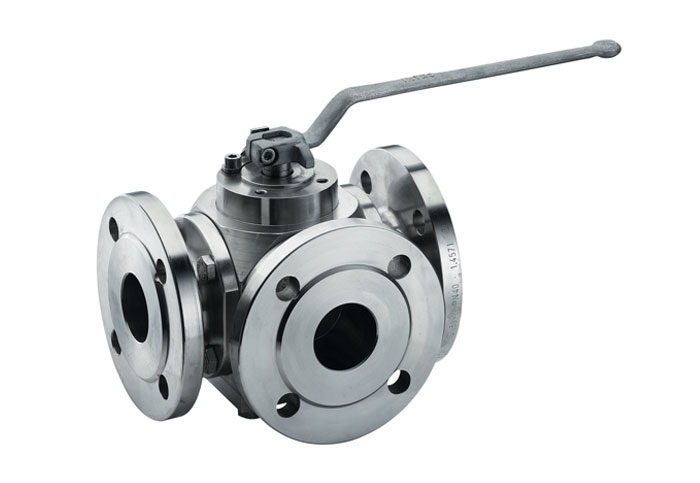

INTEC K411

Multiple way ball valve, trunnion mounted ball, both sides spring loaded seat rings, metal seated.

Features

  • nominal sizes DN 15 - DN 100
  • nominal sizes NPS 1/2" - NPS 4"
  • 3-way ball valve
  • metal seated
  • trunnion mounted ball
  • both sides spring loaded seat rings
  • ball with L- or T-bore
  • FTF dimensions acc. to EN 558, GR.1
  • FTF dimensions acc. to ANSI B 16.10
  • flanges acc. to EN 1092
  • flanges acc. to ANSI B 16.5
  • top flange DIN EN ISO 5211
  • full bore
Material Material Code Nominal diameter Pressure Temperature
stainless steel 1.4408/1.4571/1.4404 DN 15 - DN 100 PN 40 -10°C up to +225°C
stainless steel 1.4408/1.4571/1.4404 DN 100 PN 16 -10°C up to +225°C
carbon steel 1.0619/1.0460 DN 15 - DN 100 PN 40 -10°C up to +225°C
carbon steel 1.0619/1.0460 DN 100 PN 16 -10°C up to +225°C
stainless steel ASTM A351-CF8M NPS 1/2" - NPS 4" Class 300 -29°C up to +225°C
stainless steel ASTM A351-CF8M NPS 1/2" - NPS 4" Class 150 -29°C up to +225°C
carbon steel ASTM A216 WCB NPS 1/2" - NPS 4" Class 300 -29°C up to +225°C
carbon steel ASTM A216 WCB NPS 1/2" - NPS 4" Class 150 -29°C up to +225°C
