INTEC K200

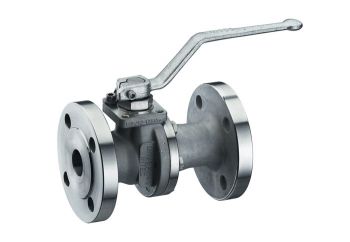

INTEC K200 - 2-piece Flanged Ball Valves

INTEC K2xx: Seat ring system soft seated / PEEK seated.

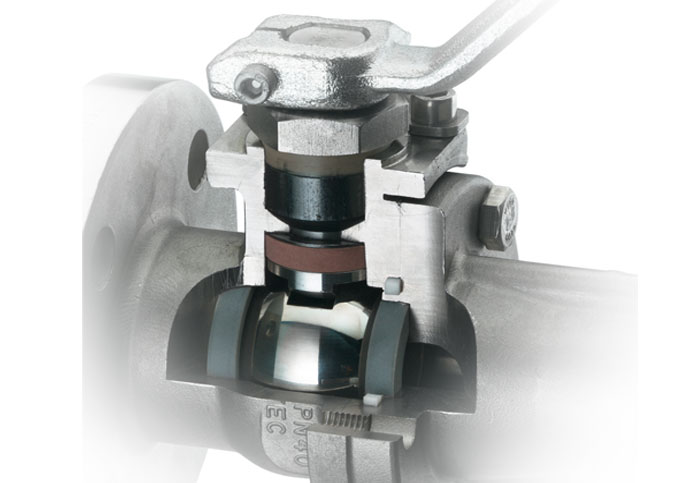

INTEC_K200_Zawór kulowy kołnierzowy Systemtech_

High end ball valves for the chemical industry. Proven design with perfect technical functionality. The ball valves are available in various material combinations and with different features.

Concept of INTEC System technology

  • Approvals acc. to virtually regulations
  • System construction unit of all components for reduction of storage costs
  • No o-rings - universal applicable
  • Stuffing box system absolutely ageing resistant
  • System design in a Graphite/KF cone ring principle
  • Real primary sealing, no friction washer or bearing ring using of the floating ring seal principle (Graphite cone ring in KFGN-profile)
  • Stem material Duplex (1.4462), using of best knowledge of the pump technology
  • Reinforced stem design for more safety in automation
  • FDA conformity for pharmaceutical application
  • BAM conformity for oxygen (optional)

Product Advantages "Seat ring system soft seated / PEEK seated"

  • Three side chambering of the seat ring
  • Reduction of abrasion, microdiffusion and operating torque
  • Best experiences in the chemical industry are made
  • Wide range of sealing materials:
    KFM
    KFGN (nitrogenium sintered)
    KFCM (for steam application)
    PEEK (continuousoperation up to +260°C)
  • Design acc. DIN and ANSI

Accessories

  • Heating jacket
  • Hand lever extension
  • Stem extension
  • Block unit - padlock unit
  • Grid unit
  • Hand lever with bayonet locking
  • Spring close unit - automatical return handle ("dead man handle")
  • Gear (hand operated)

Special Designs

  • Special designs like Duplex, Super Duplex, Hastelloy B2/C4/C276, Titanium, Zirconium, Monell, Nickel etc.

Certificates and Approvals

  • Certified acc. to German clean air act VDI 2440, 100,000 cycles -40°C up to +220°C
  • Fire-Safe acc. to API 607 and DIN EN ISO 10497
  • Type-test approval mark No. TÜV.A.318-15
  • Type-test approval mark No. TÜ.AGG.431-09 for tanks for conveyance of dangerous goods (optional)
  • Classification acc. to SIL 2
  • ATEX 2014/34/EU
  • Type Test Certificate TTC (optional)
  • Certified acc. to API 6D (optional)

General Information

The specified pressure and temperature values showing the maximum range for orientation only. For the necessary design please note the pT diagram in the respective data sheet. Main criterion of the material code is the basic material of body and cap. The performance and service life of KLINGER valves depend to a large extent on proper storage and fitting - factors beyond the manufacture’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our operating instructions.

Overview series INTEC K2xx Flanged ball valves, soft seated / PEEK seated
