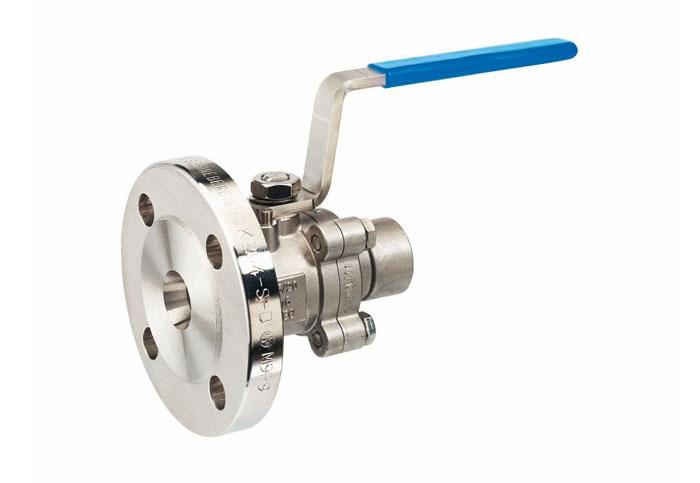

INTEC K204-S-D

Steam ball valve, outlet pressure relief connection threaded end.

Features

  • DN 25/20
  • two-piece split body
  • soft seated
  • floating ball
  • outlet pressure relief connection threaded end G 1/4"
  • FTF dimensions acc. to producers standard
  • inlet with flange connection acc. to EN 1092
  • outlet with threaded end G 3/4" acc. to EN ISO 228-1
  • reduced bore
Zawór kulowy pary intec k204-s-d Bezobsługowy parowy zawór kulowy
Material Material Code Nominal diameter Pressure Temperature
stainless steel 1.4408 DN 25/20 PN25 -10°C up to +210°C
